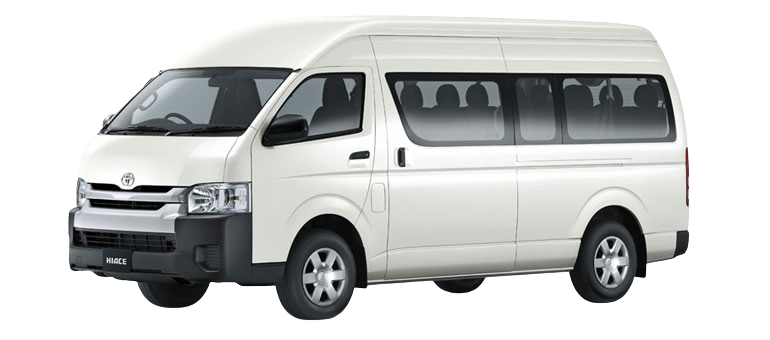

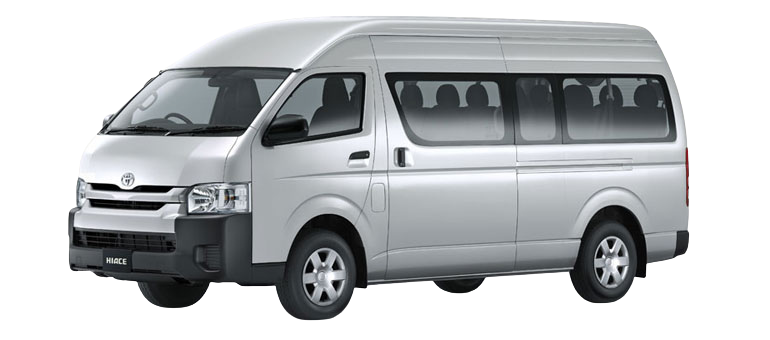

Hiace

A safe ride for everyone on board

starting at Rs 999,000
  •
  •

"A Thoroughbred Workhorse"- A heritage of proven performance with sleek styling and the enhanced capacity of a wide and long body. Tougher and more powerful than ever, the HIACE offers a superb balance of performance and economy. It has plenty of power to carry you wherever you want to go - even with a full load.

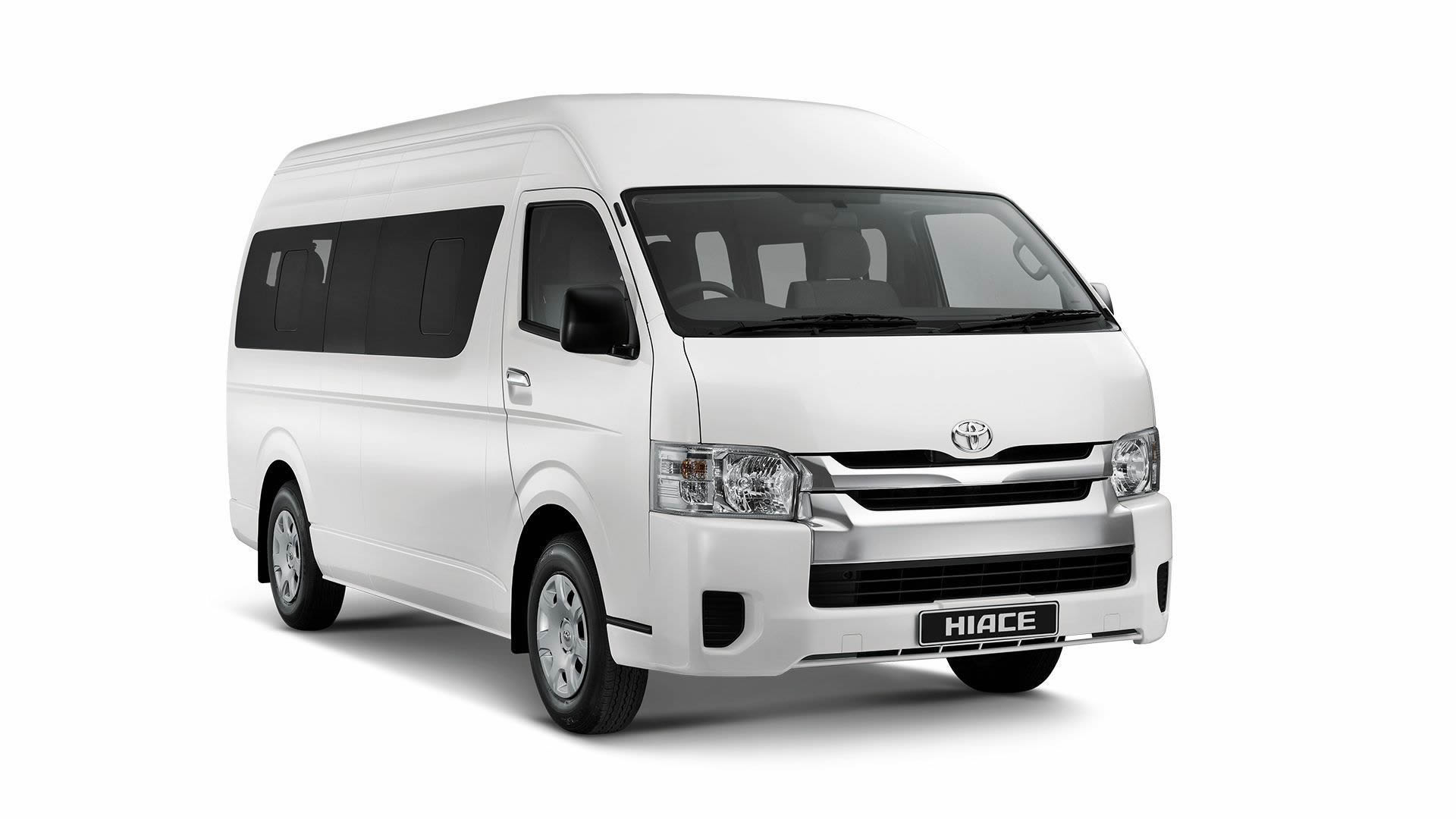

Design

Ruggedly built for years of reliable service, HIACE has proven itself on roads around the world. Designed to be tough and durable from the ground up, its dependability is legendary. Whatever types of road you ride on, you'll find the HIACE is always up to the challenge.


Safety

Safety is a key concern for everyone, and HIACE incorporates both active and passive measures to help protect the driver and passengers. From excellent visibility that contributes to collision avoidance, to crumple zone construction that helps minimize collision damage, the Toyota commitment to safety is evident in every detail.

Hiace

Full Specs


HIACE PANEL HIACE GLASS HIACE 15 HIACE 16 HIACE 14

Engine and Performance

Model Info

Body Type Van Van Commuter Commuter Commuter
1st Row Seat Configuration - - - - -
2nd Row Seat Configuration - - - - -

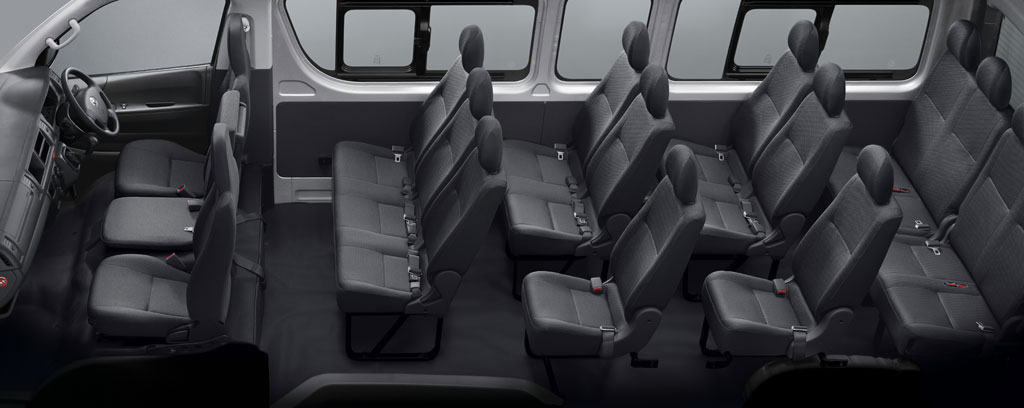

Seating capacity 3 3 15 16 14

Engine and Drivetrain

Engine Code 2KD-FTV 2KD-FTV 2KD-FTV 2KD-FTV 1GD-FTV
Number of Cylinders and Arrangement - - - - -
Bore x Stroke (mm) 92.0x93.8 92.0x93.8 92.0x93.8 92.0x93.8 92.0x103.60
Compression Ratio 18:5:1 18:5:1 18:5:1 18:5:1 15:6:1
Displacement (cm³) 2494 2494 2494 2494 2755
Valve Mechanism - - - - -
Emission Control Euro 2 Euro 2 Euro 2 Euro 2 Euro 2
Engine capacity (litre) 2.5 2.5 2.5 2.5 2.8
Engine Oil Cooler - - - - -
Engine Oil Level Warning Standard Standard Standard Standard Standard
Fuel Cut System (Impact sensing) - - - - -
Fuel System Diesel Common Rail Diesel Common Rail Diesel Common Rail Diesel Common Rail Diesel Common Rail
Maximum Power (kW @ r/min) 75 @ 3600 75 @ 3600 75 @ 3600 75 @ 3600 115 @ 3600
Maximum Torque (Nm @ r/min) 260 @ 1600 - 2400 260 @ 1600 - 2400 260 @ 1600 - 2400 260 @ 1600 - 2400 420 @ 1600 - 2200
Radiator - - - - -
Stabilizer Front only Front only Front only Front Only Front Only
Suspension (Front) Double Wishbone Double Wishbone Double Wishbone Double Wishbone MacPherson Strut
Suspension (Rear) Leaf Spring Leaf Spring Leaf Spring Leaf Spring Leaf spring rigid axle
Driven Wheels - - - - -
Transmission Manuel 5-speed Manual 5-speed Manuel 5-speed Manuel 5-speed Manual 6-speed
1st Gear Ratio 4.313 4.313 4.313 4.313 4.785
2nd Gear Ratio 2.33 2.33 2.33 2.33 2.42
3rd Gear Ratio 1.436 1.436 1.436 1.436 1.443
4th Gear Ratio 1 1 1 1 1
5th Gear Ratio 0.838 0.838 0.838 0.838 0.778
6th Gear Ratio - - - - 0.644
Reverse Gear ratio 4.22 4.22 4.22 4.22 4.067
Transfer Case - - - - -
A/T Oil Temp Warning - - - - -

Interior Features

Ashtray Standard Standard Standard Standard -
Assist Grip - - Standard Standard (front & rear) Standard + Shoulder grip
Coat Hook - - - - -
Clock Standard Digital Standard Digital Standard Digital Standard Digital Standard Digital
Centre Console Box Standard Standard Standard Standard with 2 x cup holder Standard with 2 x cup holder
Cupholders Standard 2 Standard 2 Standard 2 Standard 2 Standard 2
Door Inside Handles Black Black Black Black Color coded
Door Trim Moulded Moulded Moulded Moulded Moulded + 2 tone color
Floor Carpet Trim - - - - -
Front Headrest Standard 2 Standard 2 Standard 2 Standard 2 Adjustable - 2
Rear Headrests - - - - Standard, adjustable
Glove Box Standard Standard Standard Standard Standard
Rear View Mirror Day & Night Day & Night Day & Night Day & Night Day & Night
Key Reminder Warning Standard Buzzer Standard Buzzer Standard Buzzer Standard Buzzer Standard Buzzer
Overhead Console - - - - -
Room Lamp Standard Standard Standard Standard 2 x Front, 3 x Rear (LED)
Luggage Room Lamp - - - - -
2nd Row Seats - - - - -

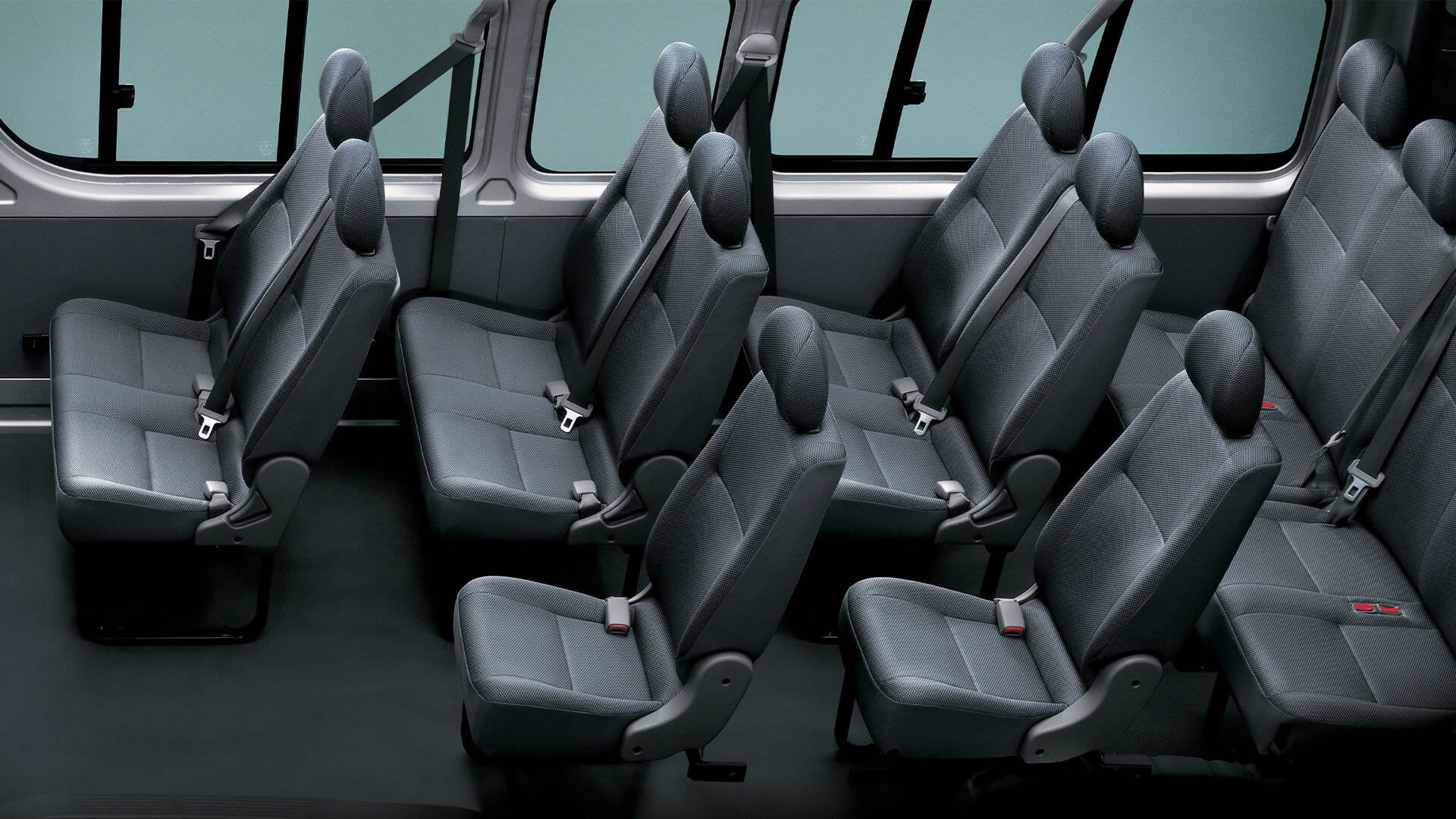

Seat Trim Vinyl leather Vinyl leather Vinyl leather Fabric -
Shift Lever & Knob MT MT MT MT MT
Steering Wheel 4 Spoke/Urethane 4 spoke/Urethane 4 Spoke/Urethane 4 Spoke/Urethane 4 Spoke/Urethane
Shift Position Indicator - - - - -
4WD Indicator - - - - -
Economy Meter - - - - -
Water Temperature Meter
Seat Back Pockets - - - - -

Convenience

Light Remind Warning Standard Buzzer Standard Buzzer Standard Buzzer Standard Buzzer Standard Buzzer

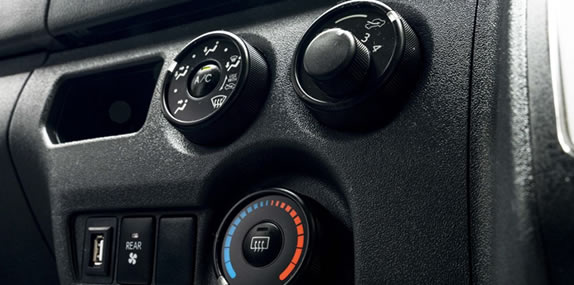

Airconditioner Optional - Optional Optional Standard, Manual
Heater Manuel Manuel Manuel Manuel Manuel

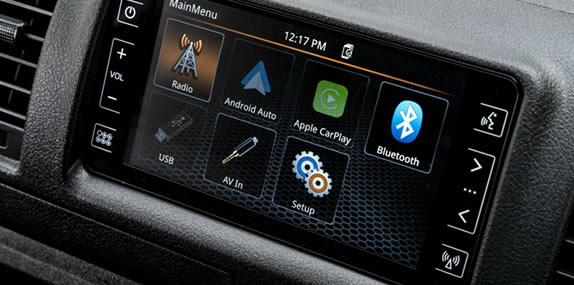

Audio System Optional Optional Optional Optional AM(9KHZ)/FM/CD
Auxiliary Input Optional Optional Optional Optional Standard
USB Optional Optional Optional Optional Standard
Bluetooth Optional Optional Optional Optional Standard
Speakers Standard 2 Standard 2 Standard 2 Standard 2 Standard 6
Electric Windows Optional Optional Front/One Touch Driver only Front/One Touch Driver only Front/One Touch, Driver and Passenger side
Front Seat Adjustment Manual Manual Manual Manual Manual
Front Seat Vertical Adjuster - - - - -
Seat Lumbar Support - - - - -
Seat Heater - - - - -
Illuminated Entry - - - - Standard
Multi-Information Display Standard Standard Standard Standard -
Power Steering Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic
Steering Column Adjustments Manual/Tilt Manual/Tilt Manual/Tilt Manual/Tilt Manual/Tilt & telesco
Steering Switches - - - - Standard
Cruise Control - - - - -
Sun Visor Standard Standard Standard Standard Standard
Power Socket Standard Standard Standard Standard Standard

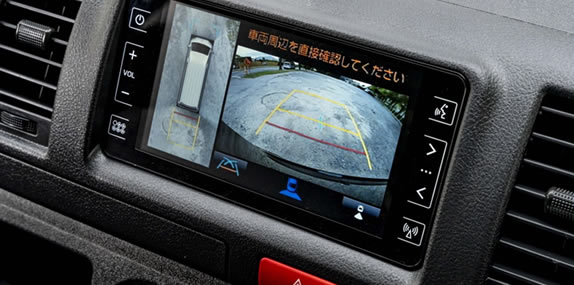

Reverse Camera - - - - Standard

Exterior Features

Air Spats - - - - Standard ( Front & Rear )
Antenna Standard Standard Standard Standard Standard
Daytime Running Light - - - - -
Door Outside Handles Black Black Black Black Colour Coded
Front Bumper Black Black Black Black Colour Coded
Front Fog Lamps - - - - Standard
Front Window Wiper Intermittent Intermittent Intermittent Intermittent Intermittent
Rear Window Wiper Intermittent Intermittent Intermittent Intermittent Intermittent
Headlights Halogen Halogen Halogen Halogen Halogen
Headlamps Cleaner - - - - -
Headlamp Levelling - - - - -
High-Mounted Brake Light Standard LED Standard LED Standard LED Standard LED Standard LED
Luggage Boot / Rear Door - - - - -
Model Name Mark - - - - -
Rear Lights - - - - -
Side Mirrors Black Black Black Black Color, Electric, Retractable

Styling

Rear Spoiler - - - - -
Mud Guards Front & Rear Front & Rear Front & Rear Front & Rear Without
Sun Roof - - - - -
Package trim and Tonneau cover - - - - -
Roof Rails - - - - -

Wheels & Tyres

Wheel and Tyre F: 195-R15 Alloy/ R:195-R15 Alloy F: 195-R15 Alloy/ R:195-R15 Alloy F: 195-R15 Alloy/ R:195-R15 Alloy F:195-R15 Alloy /R: 195-R15 Alloy 235/65R16C Alloy
Spare Tyre Full 195-R15 Alloy Full 195-R15 Alloy Full 195-R15 Alloy Full 195-R15 Alloy Ground tyre, 235/65R16CAlloy
Spare Wheel Carrier

Performance

Top Speed (km/h) - - - - -
Fuel Consumption (Combined Cycle) (l/100km)*subject to use environment and condition - - - - -

Dimensions and Capacities

Length (mm) 4695 4695 4695 5380 5915
Width (mm) 1695 1695 1695 1880 1950
Height (mm) 1980 1980 1980 2285 2280
Interior Length (mm) - - - - -
Interior Width (mm) 1545 1545 1545 1545 -
Interior Height (mm) 1320 1320 1320 1320 -
Ground Clearance (mm) 195 195 195 195 185
Wheelbase (mm) 2570 2570 2570 3110 3860
Turning circle (tyres, m) 5 5 5 5 6.4
Front Tread (mm) 1470 1470 1470 1655 1675
Rear Tread (mm) 1465 1465 1465 1650 1670
Approach Angle (°) 18.5 18.5 18.5 18.5 15.2
Departure Angle (°) 19.5 19.5 19.5 19.5 15.4
Fuel Tank Size (L) 70 70 70 70 65
Luggage Capacity (L) - - - - -

Safety

Rear Window Demister - - - - -

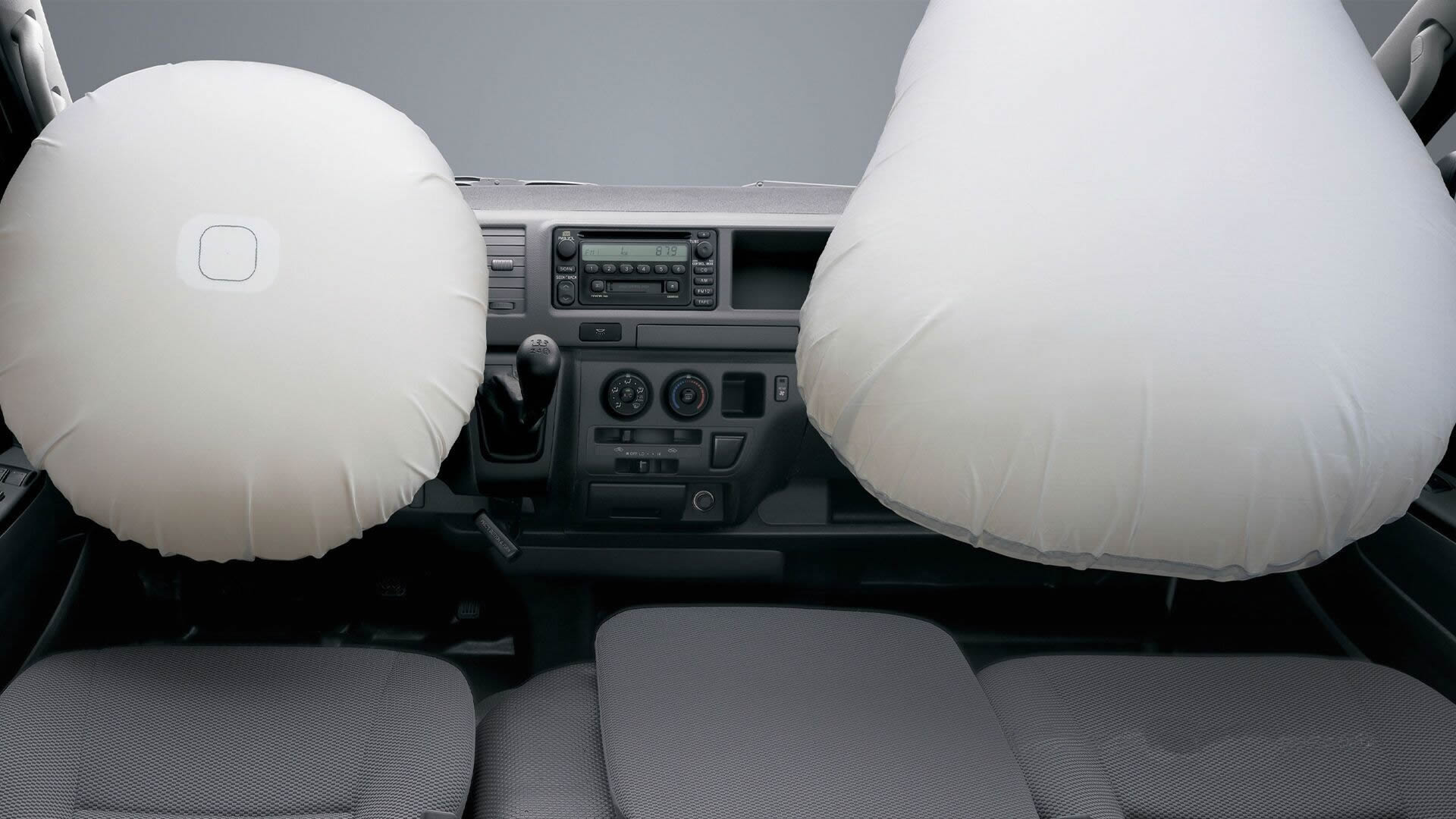

Front Airbag(s) Optional Optional Optional Optional Standard Driver + Passenger
Side Airbags - - - - -
Curtain Airbags - - - - -
Knee Airbag(s) - - - - -
Anti-Theft System - - - - Standard
Power Door Lock Optional Optional Optional Optional Standard
Wireless Door Lock - - - - Standard Remote
Child Lock - - - - -
Child Restraint System (ISOFIX) - - - - -
Emergency Brake Signal - - - - -
Parking Brake - - - - -
Occupant Detection - - - - -
Front Seat Belts ELR,3 Point ELR, 3 point ELR, 3 point, pretensioner ELR, 3 point, pretensioner ELR,Pretensioner, force limiter
Rear Seat Belts - - - - 3 point seat belt for all
Centre Rear Seatbelt - - - - -
Height Adjustable Seat Belt - - - - -
Seat Belt Warning - - - Optional Standard - Driver & Passenger

Driver Support Systems

Anti-Lock Braking System (ABS) - - - Optional Standard
Electronic Brake Force Distribution (EBD) - - - - -
Hill Assist Control (HAC) - - - - -
Downhill Assist Control (DAC) - - - - -
Trailer Sway Control (TSC) - - - - -
Vehicle Stability Control (VSC) - - - - Standard
Blind Spot Monitor (BSM) - - - - -
Park Distance Control - - - - -

Service and Warranty

Service Intervals (km) 5000kms 5000kms 5000kms 5000kms 5000kms
Warranty 3 years/10000km 3 years/10000km 3 years/10000km 3 years/10000km 3 years/10000km
