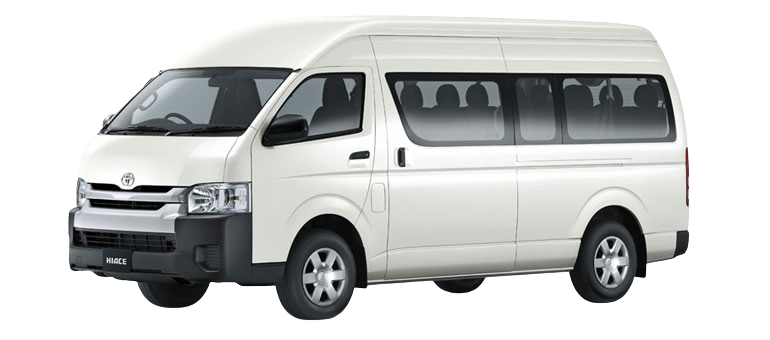

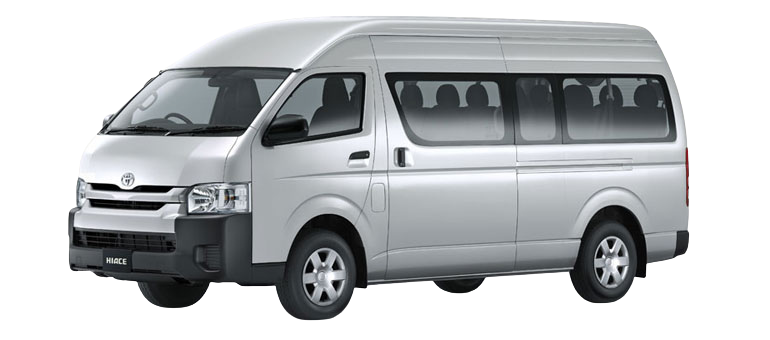

Hiace

A safe ride for everyone on board




starting at

Rs 1,031,065

White 040

"A Thoroughbred Workhorse"- A heritage of proven performance with sleek styling and the enhanced capacity of a wide and long body. Tougher and more powerful than ever, the HIACE offers a superb balance of performance and economy. It has plenty of power to carry you wherever you want to go - even with a full load.

Design

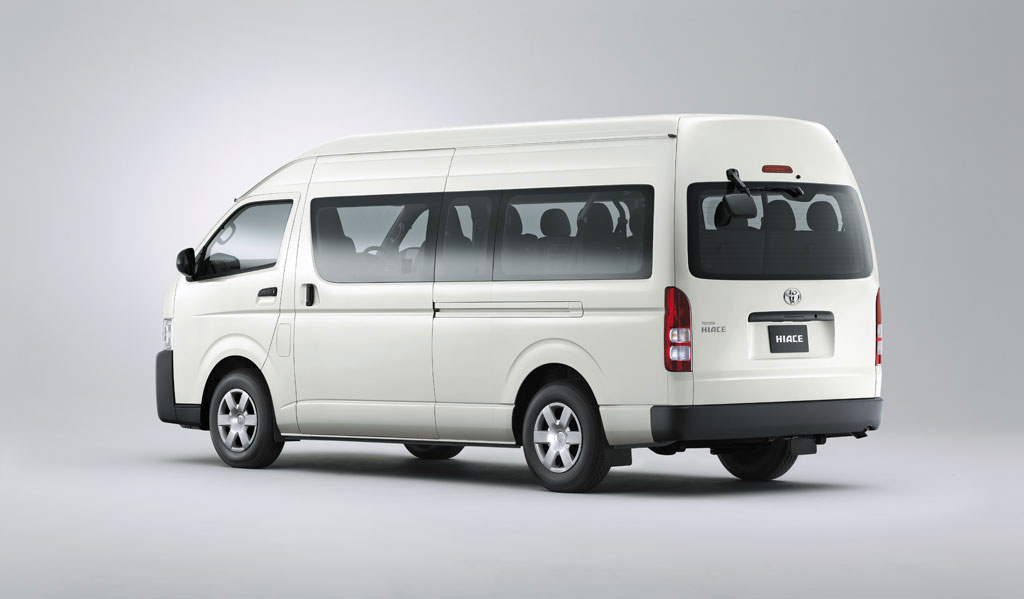

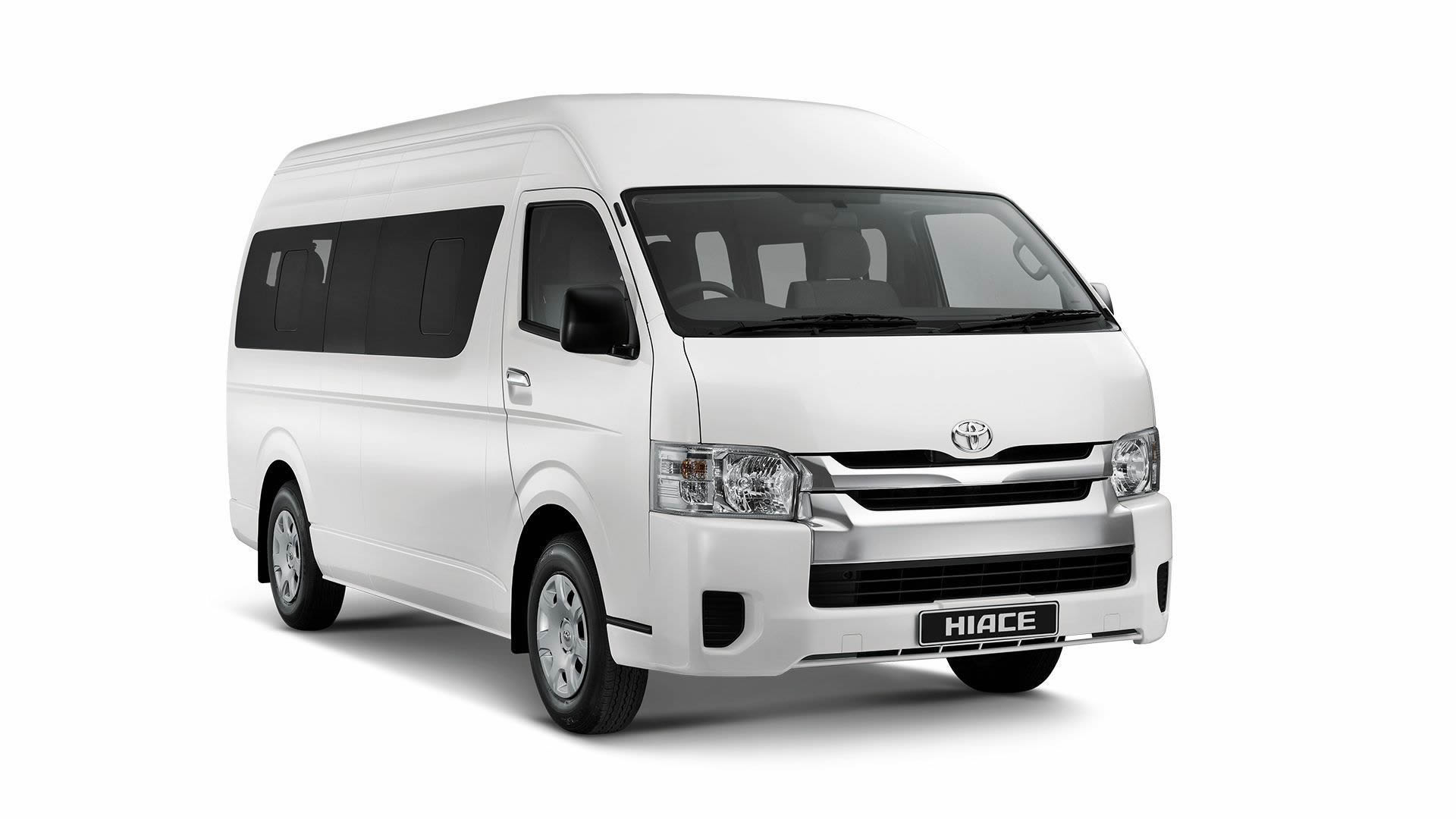

Ruggedly built for years of reliable service, HIACE has proven itself on roads around the world. Designed to be tough and durable from the ground up, its dependability is legendary. Whatever types of road you ride on, you'll find the HIACE is always up to the challenge.

Safety

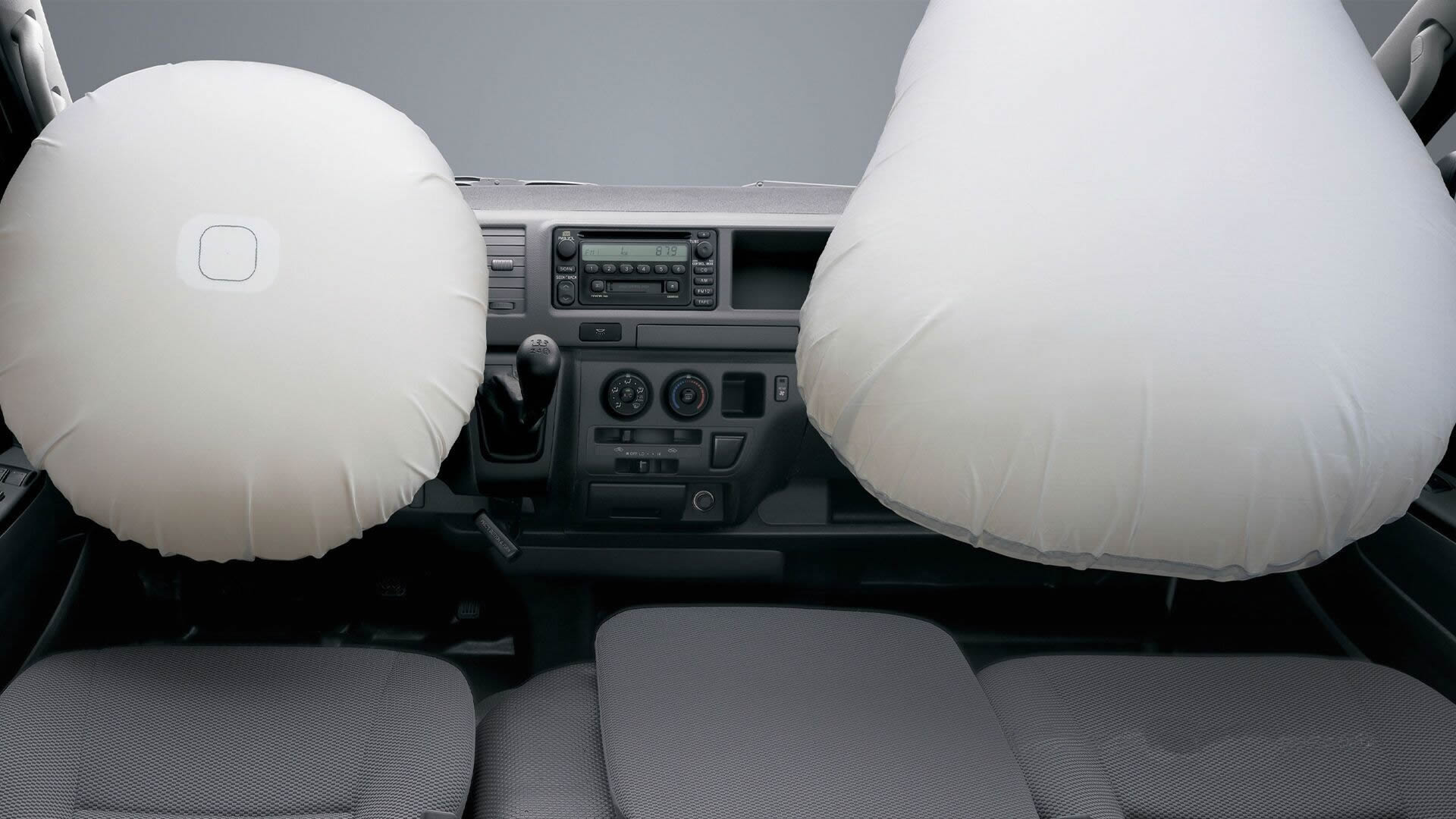

Safety is a key concern for everyone, and HIACE incorporates both active and passive measures to help protect the driver and passengers. From excellent visibility that contributes to collision avoidance, to crumple zone construction that helps minimize collision damage, the Toyota commitment to safety is evident in every detail.

Comfort

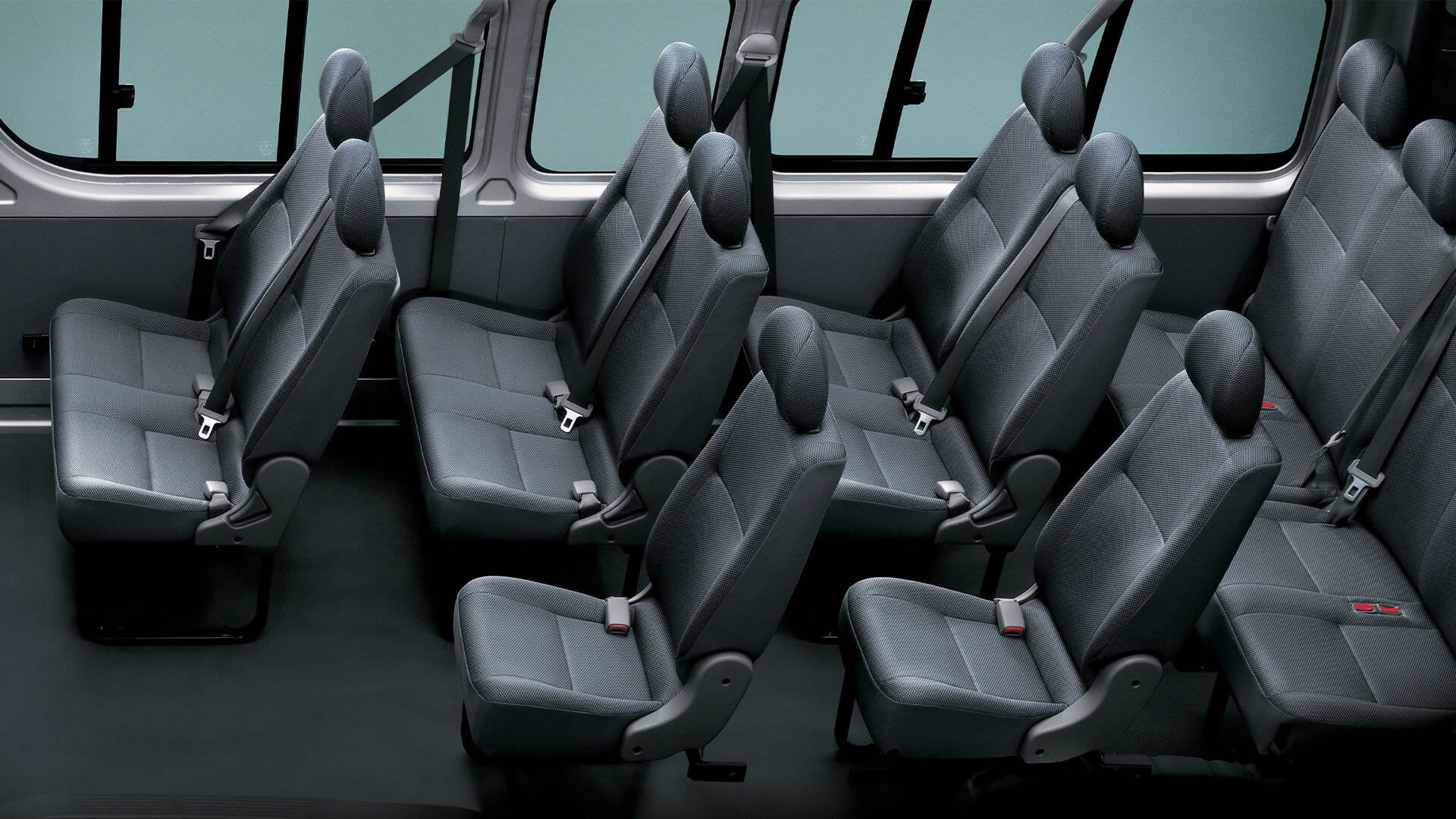

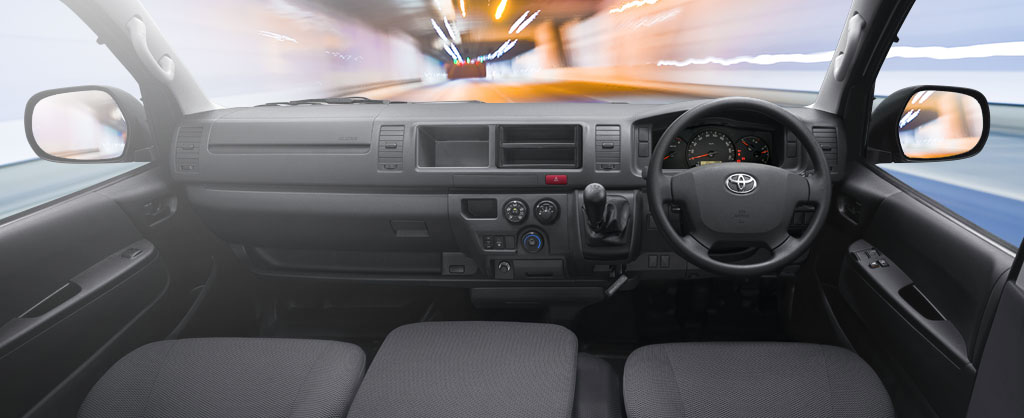

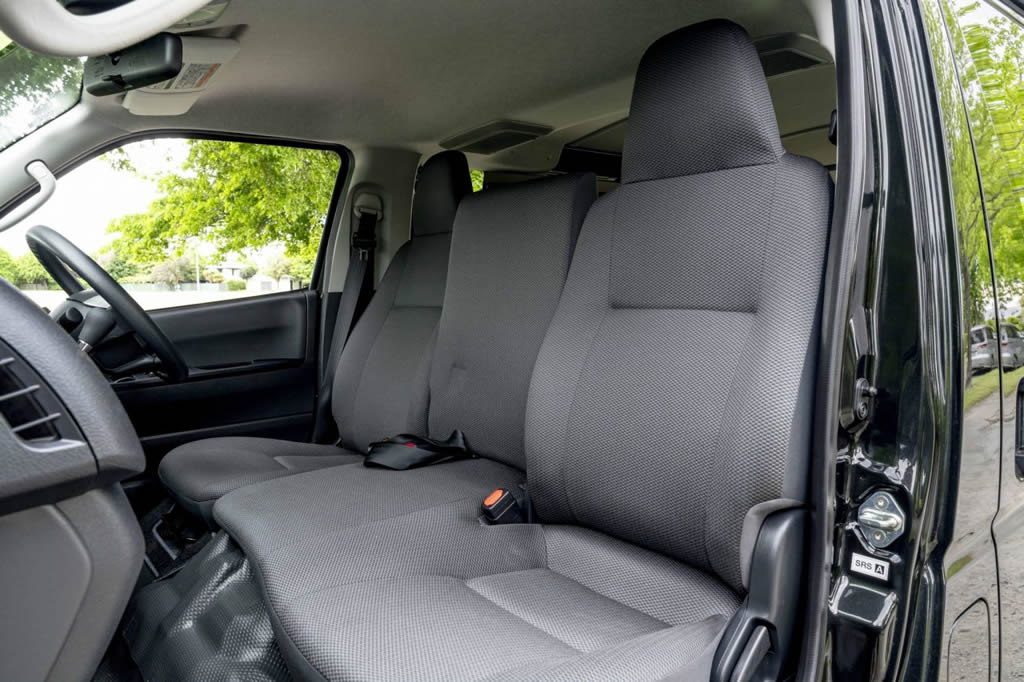

Intelligent design assures improved control and driving at all times. Essential indicators and switches are positioned for maximum visibility and intuitive operation and the panel-mounted shift lever allow pass-through access from either side of the cabin. Ergonomic seat design contributes to a fatigue-free driving experience on long trips and in stop-and-go city traffic, keeping you refreshed, alert, and focused on the road.

Hiace

Full Specs


HIACE GLASS

HIACE PANEL

HIACE 15

HIACE 16

HIACE 14

Model Info
Body Type Van Van Bus Bus Bus
1st Row Seat Configuration - - - - -
2nd Row Seat Configuration - - - - -

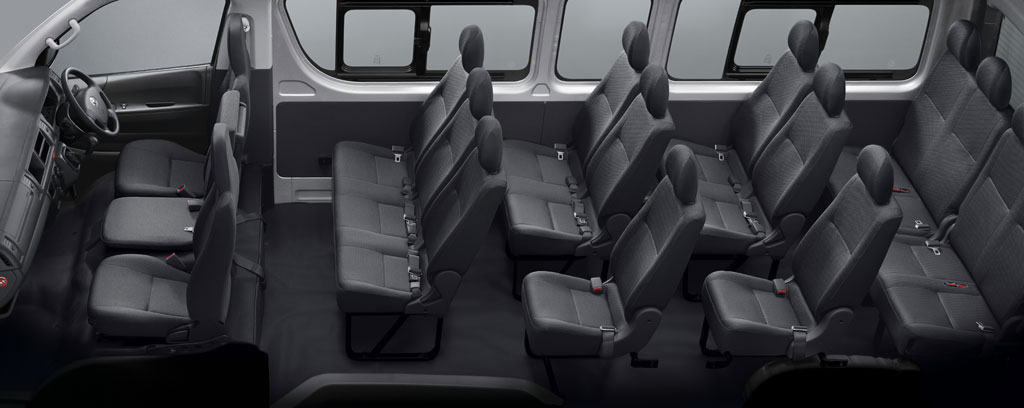

Seating capacity 3 3 10 14 14
Engine and Drivetrain
Engine Code 2KD-FTV 2KD-FTV 2KD-FTV 2KD-FTV 2KD-FTV
Number of Cylinders and Arrangement - - - - -
Bore x Stroke (mm) 92.0x93.8 92.0x93.8 92.0x93.8 92.0x93.8 92.0x93.8
Compression Ratio 18:5:1 18:5:1 18:5:1 18:5:1 18:5:1
Displacement (cm³) 2494 2494 2494 2494 2494
Valve Mechanism - - - - -
Emission Control Euro 2 Euro 2 Euro 2 Euro 2 Euro 2
Engine capacity (litre) 2.5 2.5 2.5 2.5 2.5
Engine Oil Cooler - - - - -
Engine Oil Level Warning Standard Standard Standard Standard Standard
Fuel Cut System (Impact sensing) - - - - -
Fuel System Diesel Common Rail Diesel Common Rail Diesel Common Rail Diesel Common Rail Diesel Common Rail
Maximum Power (kW @ r/min) 75 @ 3600 75 @ 3600 75 @ 3600 75 @ 3600 75 @ 3600
Maximum Torque (Nm @ r/min) 260 @ 1600 - 2400 260 @ 1600 - 2400 260 @ 1600 - 2400 260 @ 1600 - 2400 260 @ 1600 - 2400
Radiator - - - - -
Stabilizer Front only Front only Front only Front only Front only
Suspension (Front) Double Wishbone Double Wishbone Double Wishbone Double Wishbone Double Wishbone
Suspension (Rear) Leaf Spring Leaf Spring Leaf Spring Leaf Spring Leaf Spring
Driven Wheels - - - - -
Transmission Manuel 5-speed Manuel 5-speed Manuel 5-speed Manuel 5-speed Manuel 5-speed
1st Gear Ratio 4.313 4.313 4.313 4.313 4.313
2nd Gear Ratio 2.33 2.33 2.33 2.33 2.33
3rd Gear Ratio 1.436 1.436 1.436 1.436 1.436
4th Gear Ratio 1 1 1 1 1
5th Gear Ratio 0.838 0.838 0.838 0.838 0.838
6th Gear Ratio - - - - -
Reverse Gear ratio 4.22 4.22 4.22 4.22 4.22
Transfer Case - - - - -
A/T Oil Temp Warning Standard Standard Standard Standard Standard
Interior Features
Ashtray Standard Standard Standard Standard Standard
Assist Grip Standard Standard Standard Standard Standard
Coat Hook - - - - -
Clock Standard Digital Standard Digital Standard Digital Standard Digital Standard Digital
Centre Console Box Standard Standard Standard Standard Standard
Cupholders Standard 2 Standard 2 Standard 2 Standard 2 Standard 2
Door Inside Handles Black Black Black Black Black
Door Trim Moulded Moulded Moulded Moulded Moulded
Floor Carpet Trim - - - - -
Front Headrest Standard 2 Standard 2 Standard 2 Standard 2 Standard 2
Rear Headrests - - - - -
Glove Box Not Lockable Not Lockable Not Lockable Not Lockable Not Lockable
Rear View Mirror Day & Night Day & Night Day & Night Day & Night Day & Night
Key Reminder Warning Standard Buzzer Standard Buzzer Standard Buzzer Standard Buzzer Standard Buzzer
Overhead Console - - - - -
Room Lamp Standard Standard Standard Standard Standard
Luggage Room Lamp - - - - -
2nd Row Seats - - - - -
Seat Trim - - - - -
Shift Lever & Knob - - - - -
Steering Wheel 4 spoke/Urethane 4 spoke/Urethane 4 spoke/Urethane 4 spoke/Urethane 4 spoke/Urethane
Shift Position Indicator - - - - -
4WD Indicator - - - - -
Economy Meter - - - - -
Water Temperature Meter
Seat Back Pockets - - - - -
Convenience
Light Remind Warning Standard Buzzer Standard Buzzer Standard Buzzer Standard Buzzer Standard Buzzer

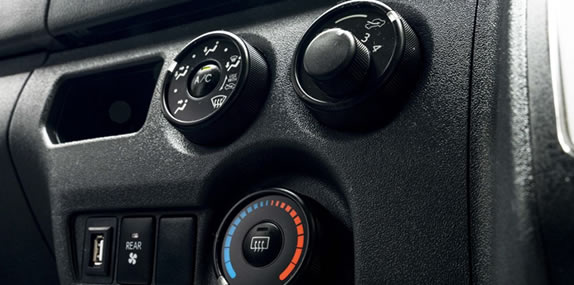

Airconditioner Optional Optional Optional Optional Optional
Heater Manuel Manuel Manuel Manuel Manuel

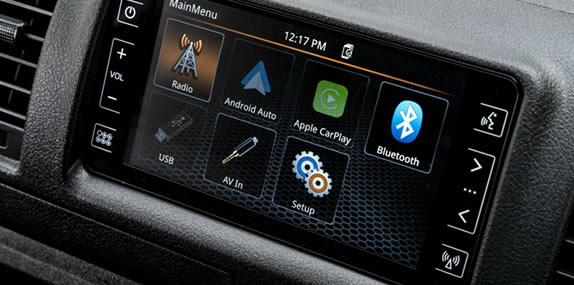

Audio System RDS RDS Toyota/RDS Toyota/RDS RDS
Auxiliary Input Standard Standard Standard Standard Standard
USB Standard Standard Standard Standard Standard
Bluetooth Standard Standard Standard Standard Standard
Speakers Standard 2 Standard 2 Standard 2 Standard 2 Standard 2
Electric Windows Front/One Touch Driver Only - Front/One Touch Driver Only Front/One Touch Driver Only Front/One Touch Driver Only
Front Seat Adjustment Manual Manual Manual Manual Manual
Front Seat Vertical Adjuster - - - - -
Seat Lumbar Support - - - - -
Seat Heater - - - - -
Illuminated Entry Standard Standard Standard Standard Standard
Multi-Information Display - - - - -
Power Steering Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic
Steering Column Adjustments Manual/Tilt Manual/Tilt Manual/Tilt Manual/Tilt Manual/Tilt
Steering Switches - - - - -
Cruise Control - - - - -
Sun Visor Standard Standard Standard Standard Standard
Power Socket - - - - -
Reverse Camera - - - - -
Exterior Features
Air Spats - - - - -
Antenna Standard Standard Standard Standard Standard
Daytime Running Light - - - - -
Door Outside Handles Black Black Black Black Black
Front Bumper Black Black Black Black Black
Front Fog Lamps - - - - -
Front Window Wiper Intermittent Intermittent Intermittent Intermittent Intermittent
Rear Window Wiper - - - - -
Headlights Halogen Halogen Halogen Halogen Halogen
Headlamps Cleaner - - - - -
Headlamp Levelling - - - - -
High-Mounted Brake Light Standard LED Standard LED Standard LED Standard LED Standard LED
Luggage Boot / Rear Door - - - - -
Model Name Mark - - - - -
Rear Lights - - - - -
Side Mirrors Black Black Black Black Chrome
Styling
Rear Spoiler - - - - -
Mud Guards Front & Rear Front & Rear Front & Rear Front & Rear Front & Rear
Sun Roof - - - - -
Package trim and Tonneau cover - - - - -
Roof Rails - - - - -
Wheels & Tyres
Wheel and Tyre F: 195-R15 Alloy/ R:195-R15 Alloy F: 195-R15 Alloy/ R:195-R15 Alloy F: 195-R15 Alloy/ R:195-R15 Alloy F: 195-R15 Alloy/ R:195-R15 Alloy F: 195-R15 Alloy/ R:195-R15 Alloy
Spare Tyre Full 195-R15 Alloy Full 195-R15 Alloy Full 195-R15 Alloy Full 195-R15 Alloy Full 195-R15 Alloy
Spare Wheel Carrier
Performance
Top Speed (km/h) 135 135 135 135 135
Fuel Consumption (Combined Cycle) (l/100km)*subject to use environment and condition - - - - -
Dimensions and Capacities
Length (mm) 4695 4695 4695 4695 4695
Width (mm) 1695 1695 1695 1695 1695
Height (mm) 2800 2800 2800 2800 2800
Interior Length (mm) - - - - -
Interior Width (mm) 1545 1545 1545 1545 1545
Interior Height (mm) 1320 1320 1320 1320 1320
Ground Clearance (mm) 195 195 195 195 195
Wheelbase (mm) 1695 1695 1695 1695 1695
Turning circle (tyres, m) 5 5 5 5 5
Front Tread (mm) 1470 1470 1470 1470 1470
Rear Tread (mm) 1465 1465 1465 1465 1465
Approach Angle (°) 18.5 18.5 18.5 18.5 18.5
Departure Angle (°) 19.5 19.5 19.5 19.5 19.5
Fuel Tank Size (L) 70 70 70 70 70
Luggage Capacity (L) - - - - -
Safety
Rear Window Demister - - - - -
Front Airbag(s) - - - - -
Side Airbags - - - - -
Curtain Airbags - - - - -
Knee Airbag(s) - - - - -
Anti-Theft System Silent/Immobiliser Silent/Immobiliser Silent/Immobiliser Silent/Immobiliser Silent/Immobiliser
Power Door Lock Standard Standard Standard Standard Standard
Wireless Door Lock - - - - -
Child Lock - - - - -
Child Restraint System (ISOFIX) - - - - -
Emergency Brake Signal - - - - -
Parking Brake - - - - -
Occupant Detection - - - - -
Front Seat Belts ELR, Pretensioner ELR, Pretensioner ELR, Pretensioner ELR, Pretensioner ELR, Pretensioner
Rear Seat Belts - - - - -
Centre Rear Seatbelt - - - - -
Height Adjustable Seat Belt - - - - -
Seat Belt Warning Driveronly/Light Driveronly/Light Driveronly/Light Driveronly/Light Driveronly/Light
Driver Support Systems
Anti-Lock Braking System (ABS) Standard Standard Standard Standard Standard
Electronic Brake Force Distribution (EBD) - - - - -
Hill Assist Control (HAC) - - - - -
Downhill Assist Control (DAC) - - - - -
Trailer Sway Control (TSC) - - - - -
Vehicle Stability Control (VSC) - - - - -
Blind Spot Monitor (BSM) - - - - -
Park Distance Control - - - - -
Service and Warranty
Service Intervals (km) 10 000km 10 000km 10 000km 10 000km 10 000km
Warranty 3 years/10000km 3 years/10000km 3 years/10000km 3 years/10000km 3 years/10000km
